Additional information
| Manufacturer | Microchip Technology |
|---|---|

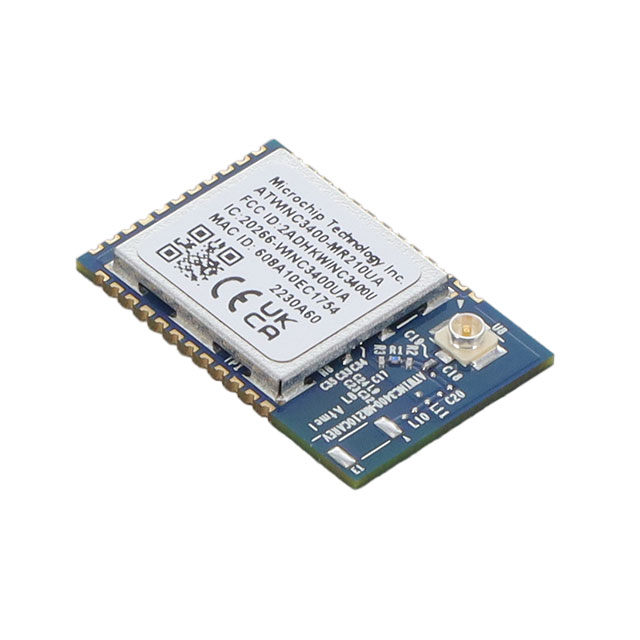

| Part | ATWINC3400-MR210UA143 |
| RF Family/Standard | Bluetooth, WiFi |
| Protocol | 802.11b/g/n, Bluetooth v5.0 |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Frequency | 2.4GHz |
| Data Rate | 400kbps |
| Power - Output | 18.3dBm |
| Serial Interfaces | I2C, SPI, UART |
| Antenna Type | Antenna Not Included, U.FL |
| Memory Size | 256kB ROM, 420kB RAM |
| Voltage - Supply | 2.7V ~ 3.6V |
| Current - Receiving | 23.7mA |
| Current - Transmitting | 24mA |
| Package / Case | 36-SMD Module |
