Additional information
| Manufacturer | Kingbright |
|---|---|

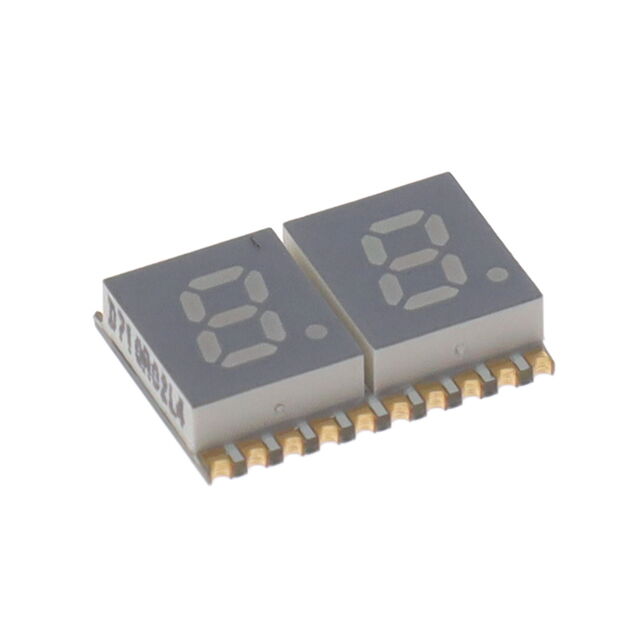

| Part | ACDA02-41SGWA-F01 |
| Number of Characters | 2 |

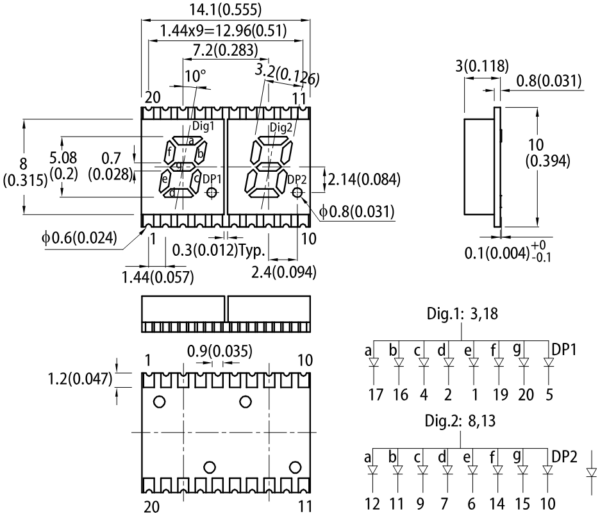

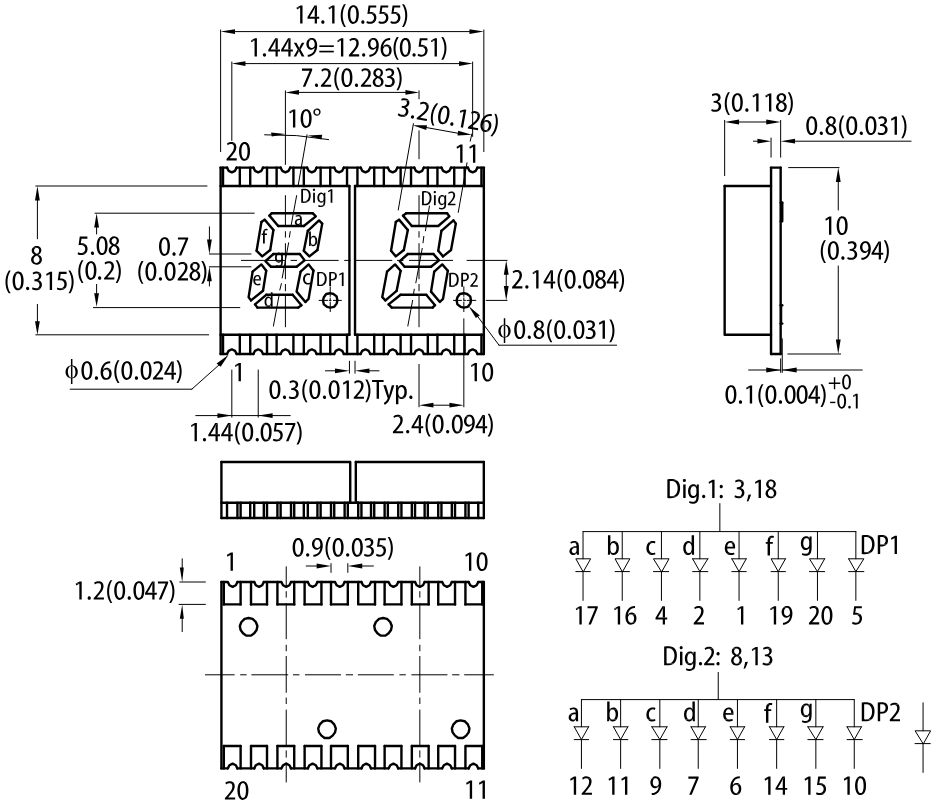

| Size / Dimension | 0.315" H x 0.555" W x 0.118" D (8.00mm x 14.10mm x 3.00mm) |
| Digit/Alpha Size | 0.20" (5.08mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Green |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Package / Case | 20-SMD, No Lead |
