Additional information
| Manufacturer | GLE |
|---|---|
| Part | GCCD4532N-220M01 |

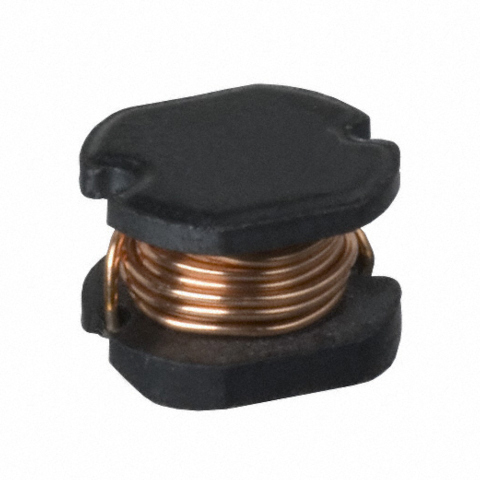

| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1 A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 378mOhm Max |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
